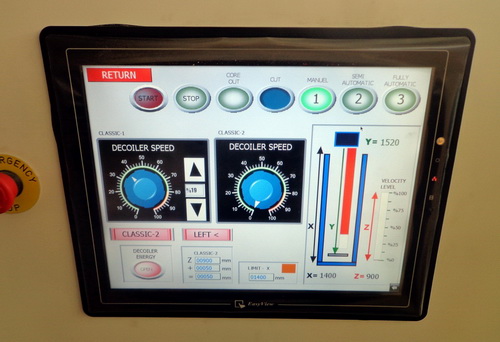

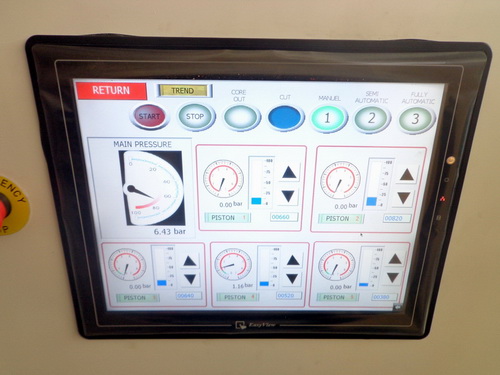

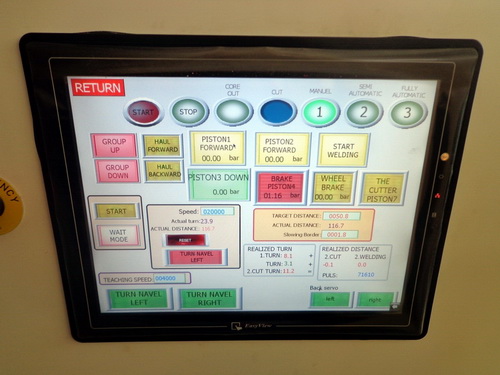

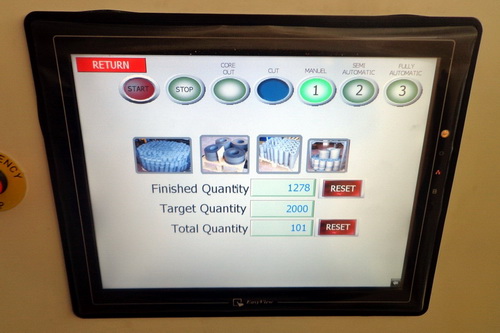

- Userfriendly control panel
- Build in the Touchless Magnetostrictive Measuring system
- PLC controlling unit
- User Planned Speed Modelling System
- Servo Motor System
Hereby we are proud to introduce you the latest developped transformer core winder machine for transformers MAN2012 .
The Fully Automatic Core Winding Machine MAN2012 which decreases the labor costs and increases the productivity has
been more developped than before now .
What makes MAN2012 different than other Core Winders?
1) The widest winding range installed in one machine:
min-max id: 19.0 - 135 mm , max. od: 220 mm , width range: 10 - 80 mm
2) The Build-in the Touchless Magnetostrictive Measuring system:
It is in the Winders History the first integrated developped system by LARA ltd. - extreme precise and speedy .
3) It is a open system: It means the user can decide his own winding style, can set all the datas
from the LCD screen according the materials physical characteristic .
4) The PC controlled Observation module: Production Reports can be e-mailed anywhere the user
wants. For example if the user wants he can log to the winder from his pc and observe the machine
through the internet .
5) The easiest system to handle: The consumer can handle all the problems during the production
by itselft, even one day the machine has a failure . Nevertheless if the consumer demands our
assistance, our team is ready to assist you in shortest time .
6) More than 2.150 different special parts have been created during assembling of the winder .
Every machine part has been designed in details and improved within our 20 years production
knowledge .
7) Core database which helps very easy to select the right winding parameters.

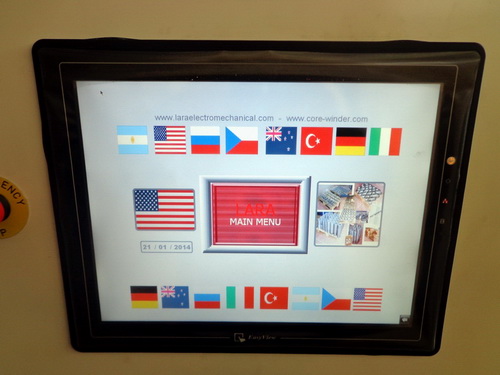

8) Menu options in English - Spanish - German - Czech - Polish - Russian - Italian....languages
9) According each different core dimension automatic pressure regulation will be done with the
pressure regulators (Japan).
10) CE approved.

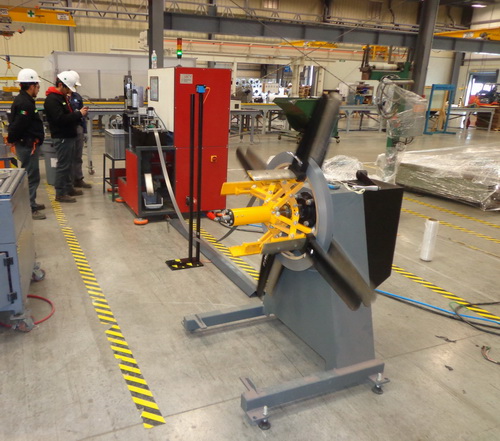

The Powered Strip case sensitive De-coiler: The De-coiler comes as a part of the package (installed laser
distance sensor - Germany).
Integral Tig Welding system: The integral welder is also under automatic control of the system and comes
as a part of the package.
4.1 REFERENCES:
Georgia (USA) , Philedelphia (USA) , Washington-Illinois (USA) , Buenos Aires(ARGENTINA) , Samara(RUSSIA),
Mexico (Apodaca -Toyota-Japan), Ekaterinburg(RUSSIA), Moscow (RUSSIA), Ostrava(CZECH REPUBLIC),
Christchurch(NEW ZEALAND) , Mumbai(INDIA) , Nashik(INDIA), Milano(ITALY) , Sulzbach (GERMANY), Sao Paulo (Brazil), Poland (Myszkow)...
_Page_3-1.jpg)
4.2 id max: 135 mm , od max: 220 mm
4.0 Transformer Core Winder Machines Worldwide

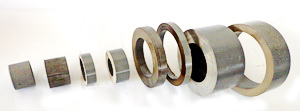

4.1.1 Toroidal cores in various sizes
For Rapid and Precise Core Testing:
The test device, swiftly assess thousands of cores and generate comprehensive average value reports in no time. Enhance your efficiency and ensure top-notch quality with our cutting-edge solution. Experience the future of testing today!
General features:
- Testing of the cores according to core specifications
- Labeling of each core according to the serial number
- Archiving test values
- Redesign Report Software
- Open-source and easy-to-modify data (transfer to Excel)
- Easy to install the software on any PC
- Calibrating the tester is straightforward because the reference is the multimeter you use,
whether it's a Fluke brand or another.

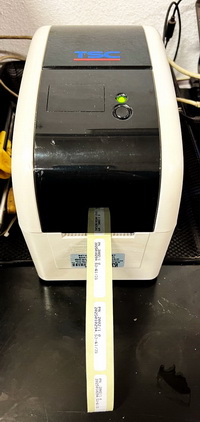

8.8 The Label Printer

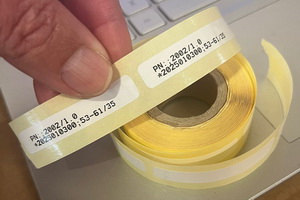

8.7 Core Labels

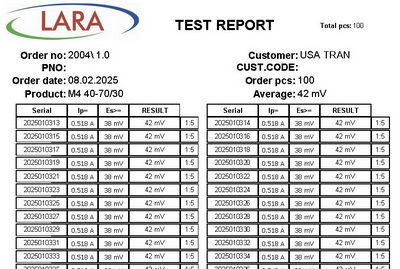

8.6 Various Test Summaries

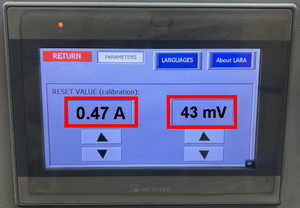

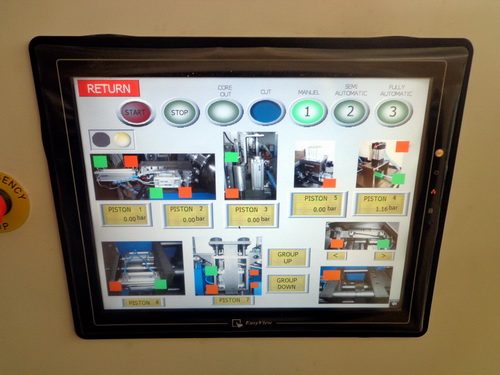

8.4 Touchscreen control

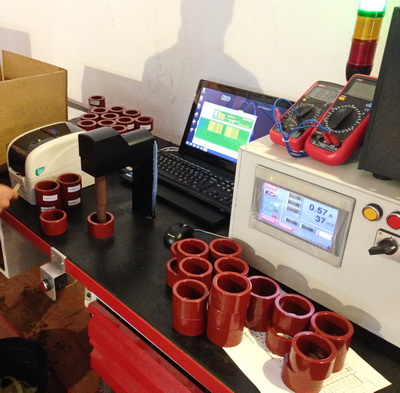

8.1 Core Test Device

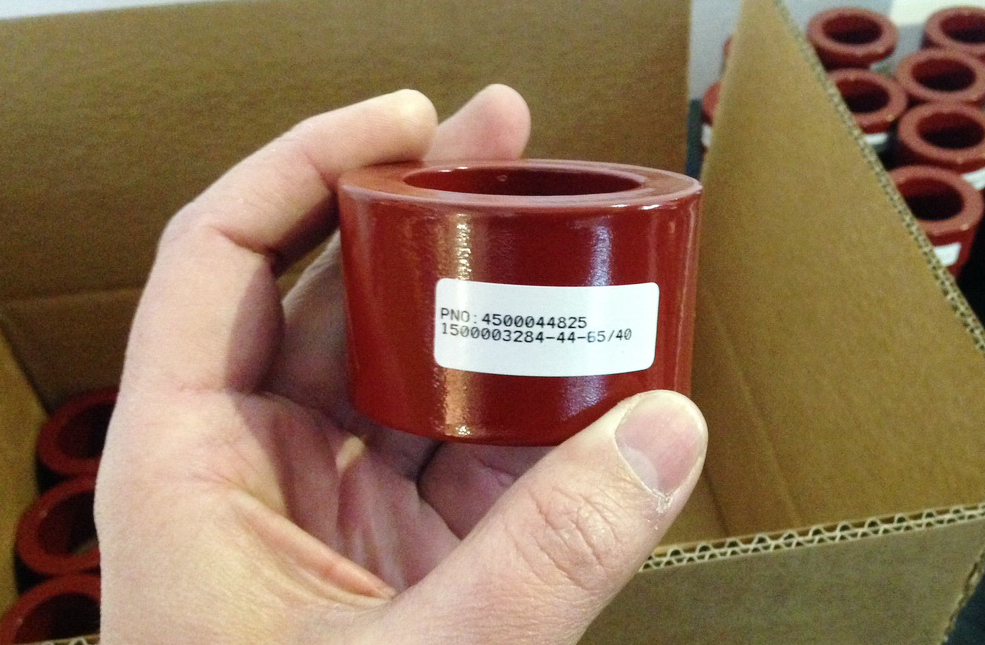

8.2 Labeled Toroidal Core

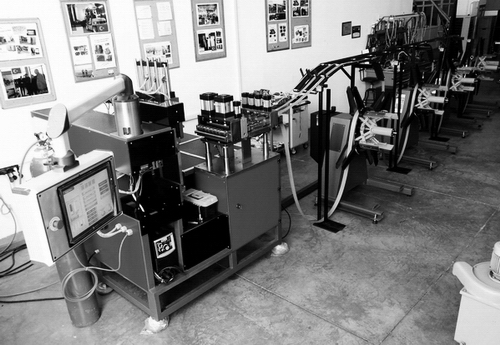

MAN2012 ; The toroidal core winder equipment for transformers
Toroidal Core Tester (T-559)
